PMAC MOTOR OPTIONS
Custom-built to your requirements utilizing the options you specify

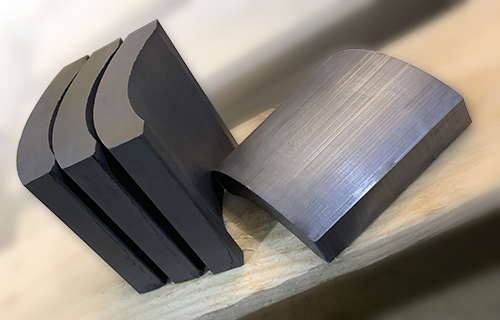

MAGNETS
- Optimum permanent magnet design for optimum performance and low losses to prevent demagnetization.
- Onsite dedicated magnetizers for optimum magnetization of new magnets or re-magnetization of weakened magnets
Powertec uses modern magnetic materials:
- Neodymium Iron Boron
- Samarium Cobalt
- Ferrite (Ceramic)

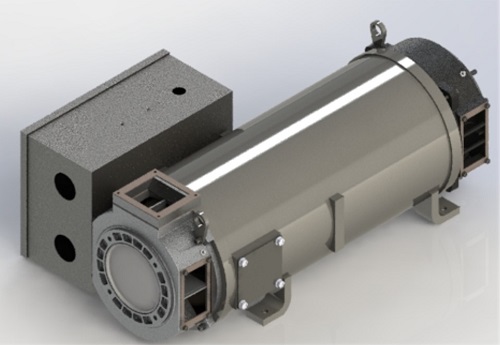

ENCLOSURES
Steel and Aluminum Materials Available
NEMA Enclosures

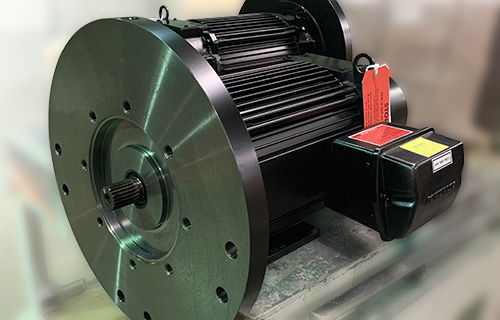

Totally Enclosed Non-Ventilated (TENV)

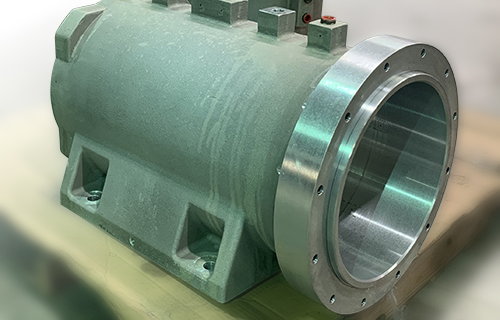

Totally Enclosed Water Cooled (TEWC)
Totally Enclosed Pipe Ventilated (TEPV)
Totally Enclosed Air Over (TEAO)

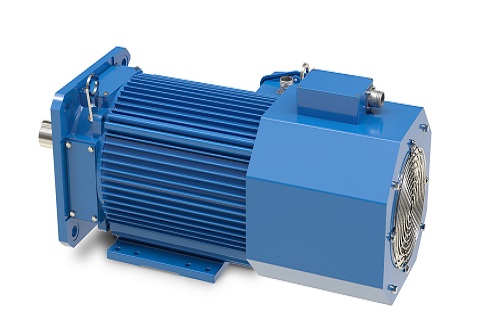

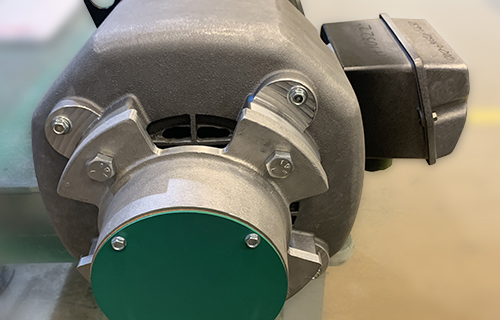

Totally Enclosed Fan Cooled (TEFC)

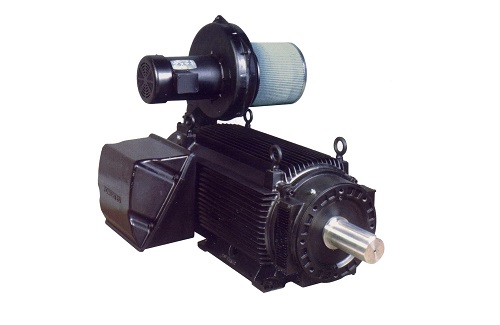

Drip Proof Blower Ventilated (DPBV)
Drip Proof Fully Guarded (DPFG)
Drip Proof Separately Ventilated (DPSV)
MOUNTING
- Customized mounting options for space restrictions and interface options
NEMA and metric mounting options

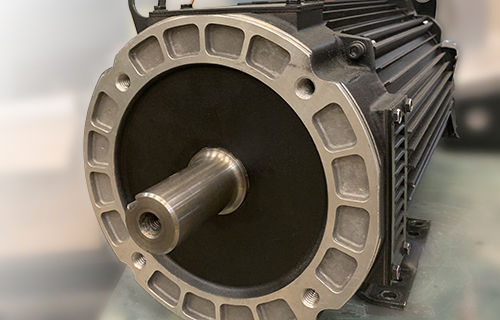

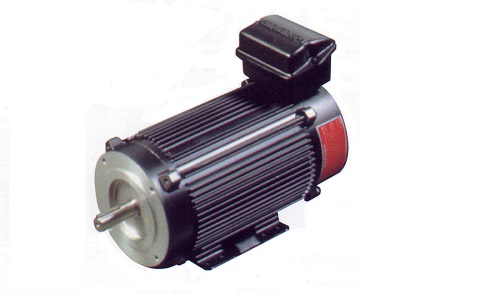

NEMA C-face (IEC B14)
D-flange (IEC B5)

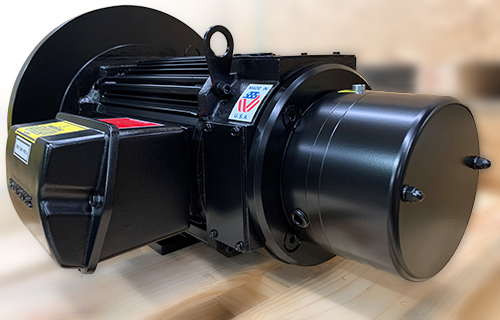

BRAKE OPTIONS
We work with brakes made by Stearns, Pintsch-Bubenzer and other leading providers that include:
- NEMA C-Face Brakes
- Foot mounted with bearing supported thru-shaft brakes
- Customer-specified brake options
NEMA C-face (IEC B14)

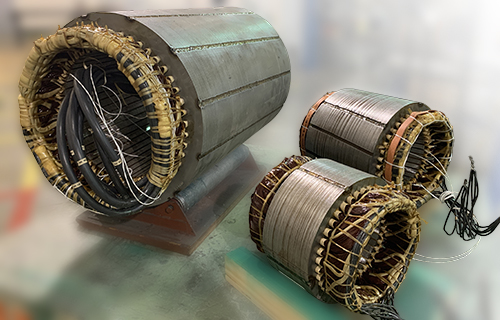

FRAME AND STATOR WINDINGS
- Inverter duty insulation system and proprietary varnish process
- Class “H” insulation system rated for Class “F” temperature rise
- Power lead termination options

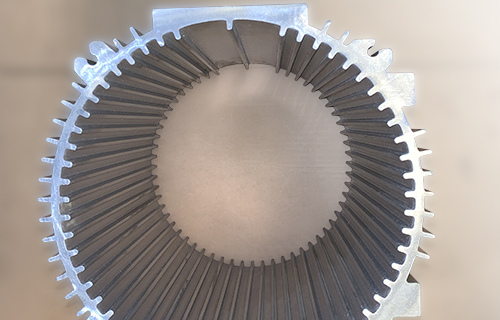

Patented double-finned
aluminum frame
Standard frame sizes
180 through 320
SHAFT OPTIONS
Standard or custom single and double shafts with different options. Keyed, keyless and splined available.

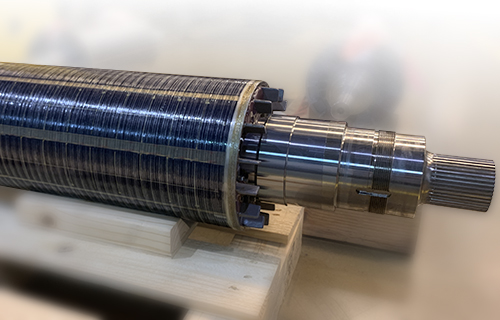

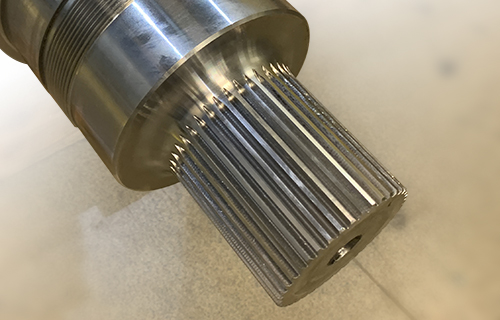

Splined Shaft Option

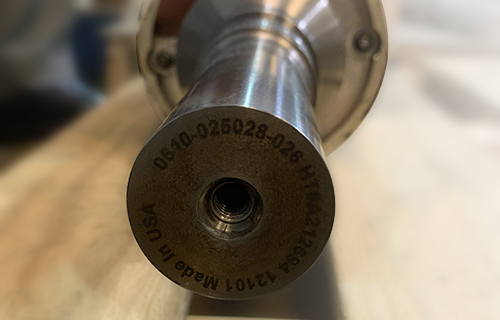

Keyless Shaft Option

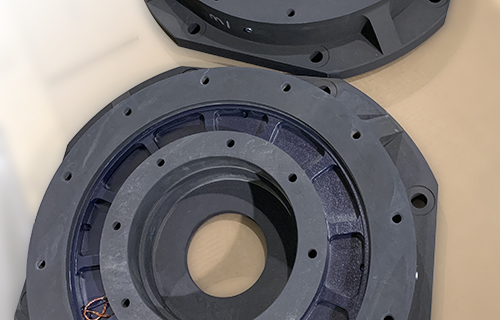

ENVIRONMENTAL COATINGS OPTIONS
Anti-corrosion coatings to protect metal surfaces against exposure to variety of environmental or industrial chemicals include epoxy coatings and other options:
